Working & Principle of Tablet Compression machine

A tablet press is a mechanical device that compresses powder into tablets of uniform size and weight. A tablet press can be used to manufacture tablets of a wide variety of materials, including pharmaceuticals, Nutraceuticals, cleaning products, industrial pellets and cosmetics.

To form a tablet, the granulated powder material must be metered into a cavity formed by two punches and a die, and then the punches must be pressed together with great force to fuse the material together.

There are 2 types of tablet presses: Single station tablet press & Multi-station tablet press.

Different parts with mechanism of Compression Machine are given below :

Tablet Compression machine Hopper

Feeder System

Tablet Compression Punches system

Tablet Compression Dies system

Tablet Compression Turret

Tablet Compression Cam tracks

Tablet Compression Filling station and weight control

Tablet Compression Rollers

Tablet Compression Ejection Cam

Take off Blade and Discharge Chute

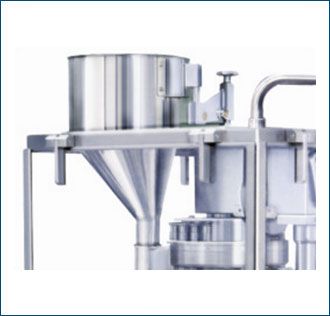

Tablet Compression Machine Hopper :


The tablet compression process starts from here and blend or powder has to put in hopper which are compress into tablets.

Depending on the design of a tablet compression machine, we can fill the powder manually or using other automated systems.

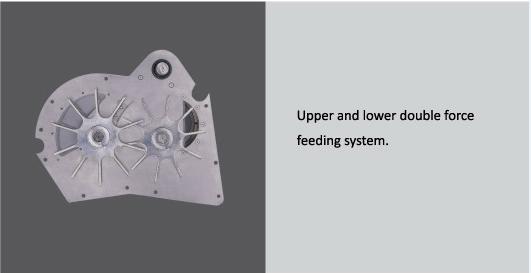

Feeder System :

Feeder System

The design of the feeder system should be such that it allows an accurate and consistent amount of powder or Blend to flow to the punch and die system.

Tablet Compression Punches (You can see in the animation Below) :

Punches and Dies

In any tablet press machine, we have

Upper punch system :

The upper punches are on the upper section of the rotary system and they move vertically, in and out of the die bore.

Lower punch system :

The lower punches are on the lower section of the rotary system of the tablet press machine and during the tablet compression process, the lower punches remain within the die bore throughout the entire cycle.

Tablet Compression Die System (You can see in the animation Above) :

The movement of tablet press machine punches, takes place within the die bore or cavity.

It is in the die cavity that the powder is compressed into desired tablets of definite thickness and size and die cavity determines both the thickness and size of a tablet.

Therefore, the punch and die must be machined together to ensure compatibility.

Tablet Compression Turret :

Turret System

The turrets are the heart of tablet press tooling.

The rotating turrets have holes that host the die system and they are precisely machined to ensure both die pockets and punch guided are fully aligned for tablet making

Every bore on its surface ensures the die and punch are fully aligned for optimal tablet making process.

A segmented rotary turret design increases production, while minimizing possible downtime during the manufacturing process and it determines the number of stations.

Tablet Compression Machine Cam Tracks (You can see in the animation Above):

Cam tracks are other critical tablet compression machine parts that play an integral role in ensuring smooth tableting process. The main work of the cam tracks is to guide the upper and lower punches in different stages in the tablet compression process.

As the turret rotates, it is the cam tracks that move the punches in an up and down motion which helps to control filling, compression and ejection of already processed tablets.

For example, as the upper cam withdraws top punches from the die, powder flows in filling the cavity.

On the other hand, the lower cam track pushes the bottom punches upwards within the die cavity. This makes the die to be overfilled by material, allowing for accurate adjustment of the die content.

Again, to achieve a maximum compression force, the upper cam track drives the top punch and the lower cam adjusts the bottom punch.

It is a simple process that must be precisely controlled to achieve the desired tablet size and weight.

Tablet Compression Filling Station & Weight Control (You can see in the animation Above) :

Weight control

By controlling the depth fill, tableting machine can easily regulate the content within its die cavity. Normally, with the help of lower cam track, the bottom punch moves upwards to a predetermined height.

This ensures the die cavity is filled to a required depth before any compression process begins.

At times, as the bottom punch moves up, the excess powder may overflow. Therefore, to avoid wastages, the excess powder automatically moves to the next die cavity, which is just about to be filled.

Compression Rollers (You can see in the animation Above) :

The idea here, is to ensure only powder is compressed to the desired shape and size. However, at times you may find air within the powder particles.

To achieve this, tablet compression machines feature a series of rollers that exert a sufficient amount of force to compress the powder and they expel air first before the compression process begins.

Pre-compression rollers

These are the very first rollers in rotary tablet press. Basically, these rollers apply a small amount of force on the upper and lower punches.

This gives the initial compression force. The aim of this process is to remove air that could be in the die or powder particles.

Main compression rollers

Main compression rollers exert a predetermined amount of force (final compression force) for the formation of tablets. The compression force at this stage is higher than the pre-compression force.

It is important that the rollers remain stable with no vibration during the entire process. This is to ensure consistency of the tablets’ thickness and size.

Tablet Compression Ejection Cam (You can see in the animation Above):

The ejection cam is located just after the main compression rollers and like the other cam tracks, ejection cams are also critical aspects of tablet compression machine parts.

Remember, after compression, the tablet is always fixed within the die systems (space between lower and upper punches).

The ejection cams steadily and slowly push the bottom punch upwards. At the same time, the top cams move up and so are the top punches.

As a result, the fully compressed tablets leave the die cavity, i.e. the compressed tablet remains just at the top of the die.

Take –off blade and Discharge Chute :

The take –off blades are fitted just above the feeder housing. Their main role is to deflect the fully compressed tablets into the discharge chute.

The discharge chute, then directs the tablets to a collection bin.
